Angular contact ball bearing 7010

2018-03-27
service content:


b bearings Precision

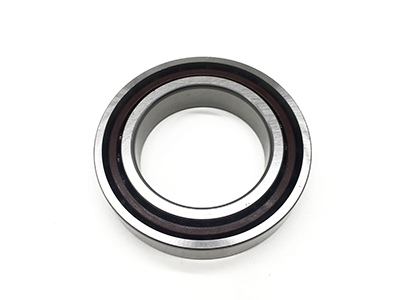

Angular contact ball bearing 7010

Quick Details:

Structure:angular contact

Type:ball

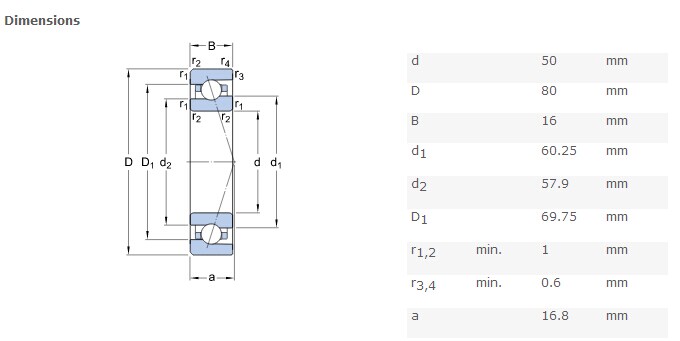

Inner diameter:50mm

Outer diameter:80mm

Width:16mm

Brand: SKF FAG INA NSK KOYO NTN…

Number of Row:single

Place of origin:Sweden

Seals type: open,sealed



Name

Angular contact ball bearing





Quality standard

ISO9001:2000 standard





Delivery  date

Normally ready goods and stock





Payment terms

T/T, Paypal,Western Union, Moneygram





Application

automotive, rolling mill, mining, metallurgical,

plastic machinery,etc.





Package

a. According to customer's requirements.

b. Original TIMKEN NSK NTN KOYO IKO good quality  packaging.

c. Laser mark on the bearing.

d. Bearing wrapped by vacuum packaging.
















The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. The retainer is made of brass, synthetic resin of others subject to individual bearing's features and application conditions
