Main Dimensions & Performance Data
d : 8 mm Bore diameter
0 mm Bore diameter upper tolerance
-0.005 mm Bore diameter lower tolerance
D : 32 mm Outside diameter
0 mm Outside diameter upper tolerance
-0.01 mm Outside diameter lower tolerance
B : 20 mm Width
0 mm Width upper tolerance
-0.25 mm Width lower tolerance
Ca : 13,800 N Basic dynamic load rating, axial
C0a : 16,300 N Basic static load rating, axial
Cua : 990 N Fatigue load limit, axial
nG Grease: 12,100 1/min Limiting speed for grease lubrication
nϑ : 5,100 1/min Thermally safe operating speed
MR : 0.08 Nm Bearing frictional torque
≈m : 88.7g Weight
Mounting dimensions
Da max : 26 mm Maximum diameter of housing
da min : 11 mm Minimum diameter shaft

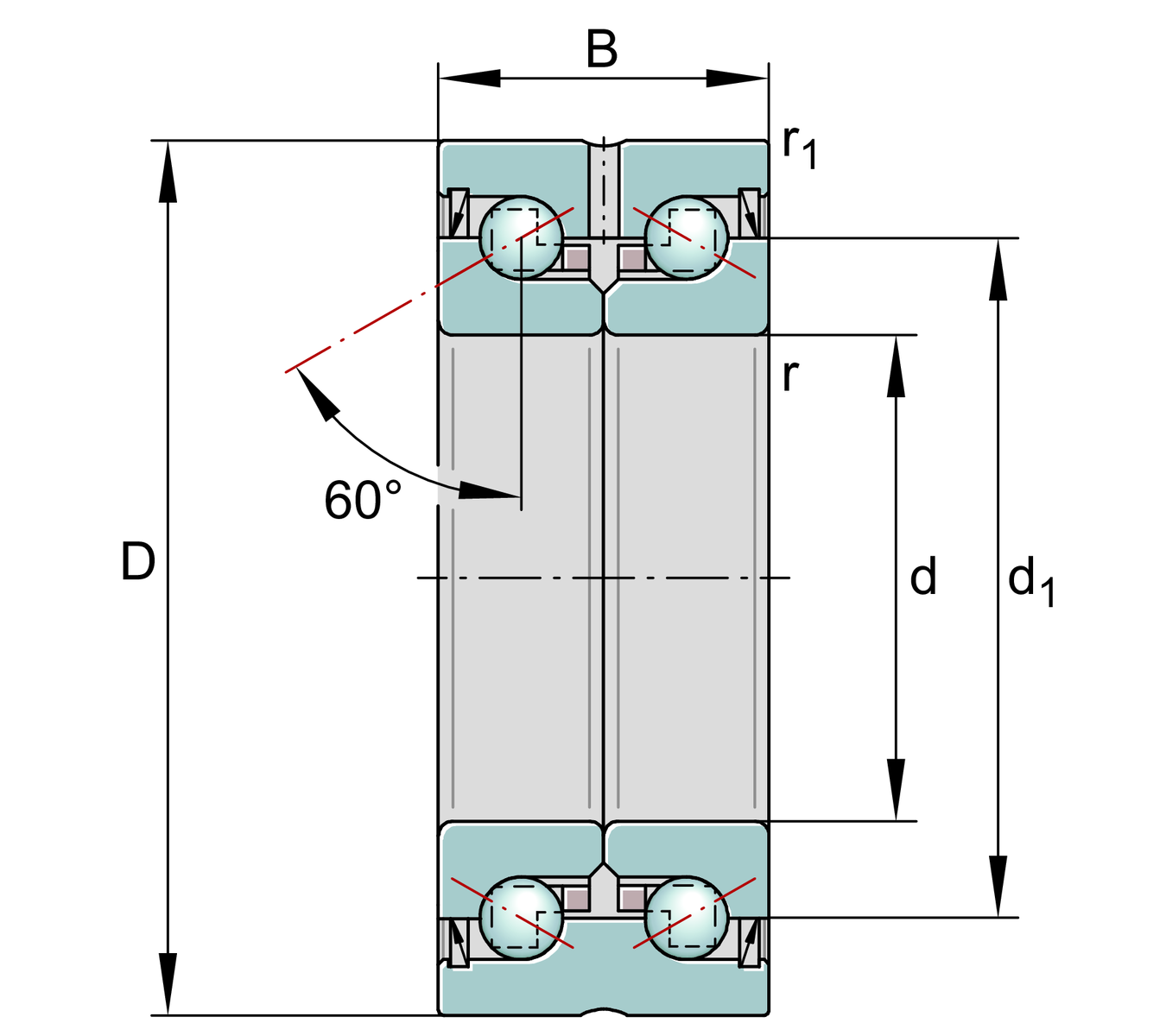

Dimensions
d1 : 19 mm Rib diameter inner ring
rmin : 0.3 mm Minimum chamfer dimension
r1 min : 0.6 mm Minimum chamfer dimension
α : 60 ° Contact angle
Temperature range
Tmin : -30 °C Operating temperature min.
Tmax: 120 °C Operating temperature max.
