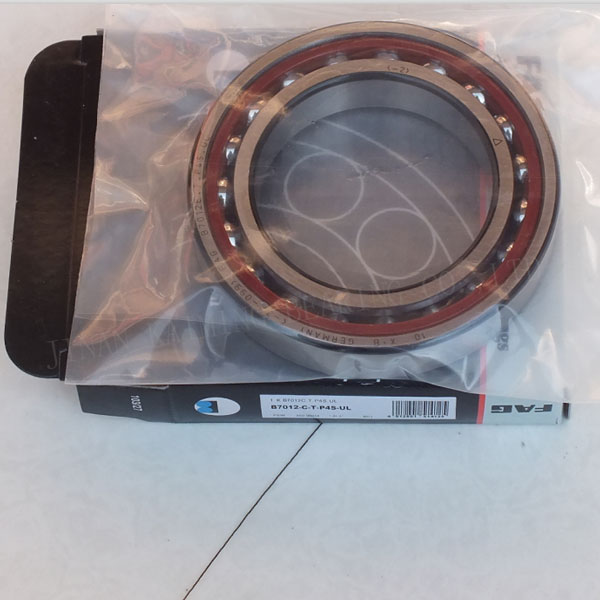

B7012-C-T-P4S-UL bearing 60x95x18mm in stock
FAG bearings B7012-C-T-P4S-UL
d: 60mm D: 95mm B: 18mm
Type:B
Standard Steel balls
Dimension series:70
Medium series
60x95x18mm
Contact angle:C
C =15° E = 25°
Cages:T
Plastic fiber cage, outer ring guided
Precision:P4S
P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:U
single bearing, universal assemble
Preload:L
light preload
B7012.C.T.P4S.UL High Precision Ball Bearing B7012-C-T-P4S-UL L Machine tool main spindle bearing
B7012CTP4SUL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 15 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany
Type: FAG Angular contact Ball Bearing
ball: steel ball
Quality: P4 Grade
Dimensions: 60mm x95mm x18mm /Metric
ID (inner diameter)/Bore: 60mm
OD (outer diameter): 95mm
Width/Height/thickness: 18mm
Size:60 x 95 x 18mm
Quantity: One Bearing
Dynamic load rating Cr: 40000 N
Static load rating Cor: 23800 N
Limiting Speed:
Grease Lubrication: 15000 RPM
Oil Lubrication: 22000 RPM
The delivery time: in stock, within one day after getting the order
Package:standard carton or standard wooden case
Shipping term:TNT,FEDEX,DHL Express or your required
