Ball guides EGH35SAZ0H Linear guideways for CNC Router

2025-01-10
service content：


Ball guides EGH35SAZ0H Linear guide roller beari



EGH35SAZ0H

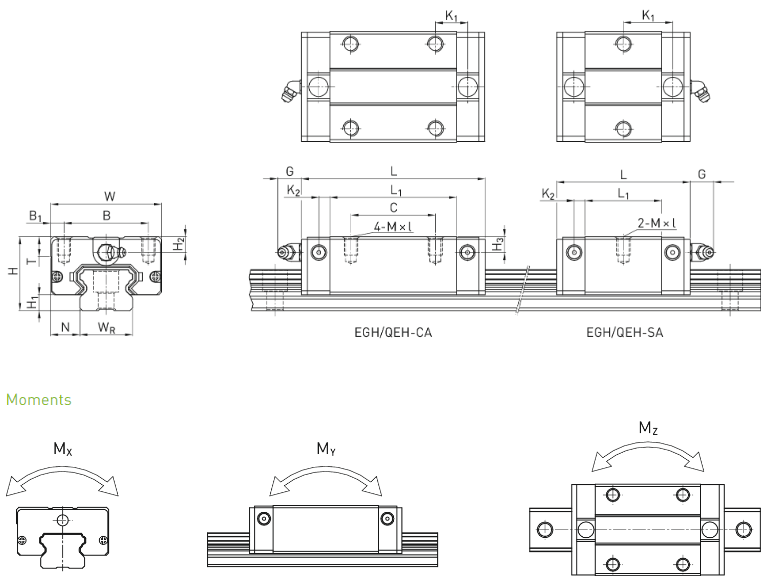

Dimensions
H Total height 48 mm
H1   11 mm
N   18 mm
W Block width 70 mm
B   50 mm
B1   10 mm
L1   45 mm
L Block length 75 mm
K1   28,5 mm
K2   7 mm
G   12 mm
M   M8
l   12 mm
T   10 mm
H2   8,5 mm
H3   8,5 mm
  Mass 0,74 kg

Load ratings and torques
Cdyn Dynamic load rating 22.660 N
C0 Static load rating 37.380 N
M0X Static moment 560 Nm
M0Y Static moment 310 Nm
M0Z Static moment 310 Nm
