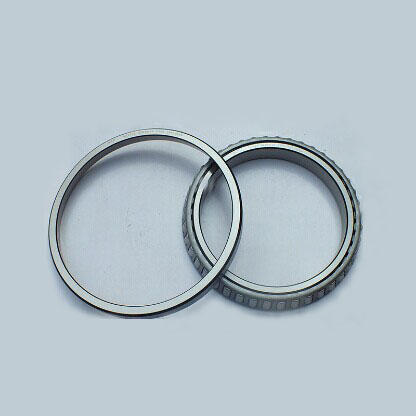

single row taper roller bearing 67790/67720
1. Gcr15 material
2. NSK,NTN,TIMKEN, SEMRI or OEM brand
3. 177.8x247.65x47.625
4. reliable quality &low price in China
Taper roller bearing description:
Auto taper roller bearings have taper inner and outer ring raceways and taper rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. The axial load carrying capacity of auto taper roller bearings increases with increasing contact angle (α). The size of the angle is indicated by the calculation factor e: the larger the value of e, the larger the contact angle. A single row taper roller bearing is typically adjusted against a second tapered roller bearing.Single row taper roller bearings are separable i.e. the inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
Applications:
Tapered Roller Bearing 30308 mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.
Specification:
Bore diameter 177.8mm
Outside diameter 247.65mm
Width 47.625 mm
Model 67790/67720
Tolerance Normal (PN)
Product performance Long lifetime, duable and reliable
Bore type Tapered
Number of rows Single, Two
Cage Sheet metal
Sealing None
Radial internal clearance Group 3 (C3)
Locating feature - bearing outside None
Relubrication feature With
Lubricant (in bearing) None
Material/Treatment Bearing steel
Dimension type Metric
