Cylindrical Roller Bearings N1013-D-K-TVP-SP-XL


Main Dimensions & Performance Data
d :65 mm    Bore diameter
D :100 mm    Outside diameter
B :18 mm    Width
Cr :53,000 N   Basic dynamic load rating, radial
C0r :58,000 N   Basic static load rating, radial
Cur :9,500 N    Fatigue load limit, radial
nG Grease:11,400    1/min   Limiting speed for grease lubrication
nG Oil:13,400        1/min       Limiting speed for oil lubrication
≈m :0.44 kg     Weight
Mounting dimensions
da :75 mm    diameter shaft shoulder
h12      diameter shaft shoulder tolerance
Da :92.2 mm    diameter of housing shoulder
H12      diameter of housing shoulder tolerance
Etk 1 nom:89.3 mm   Injection pitch diameter min
ra1 max :1 mm    Maximum recess radius

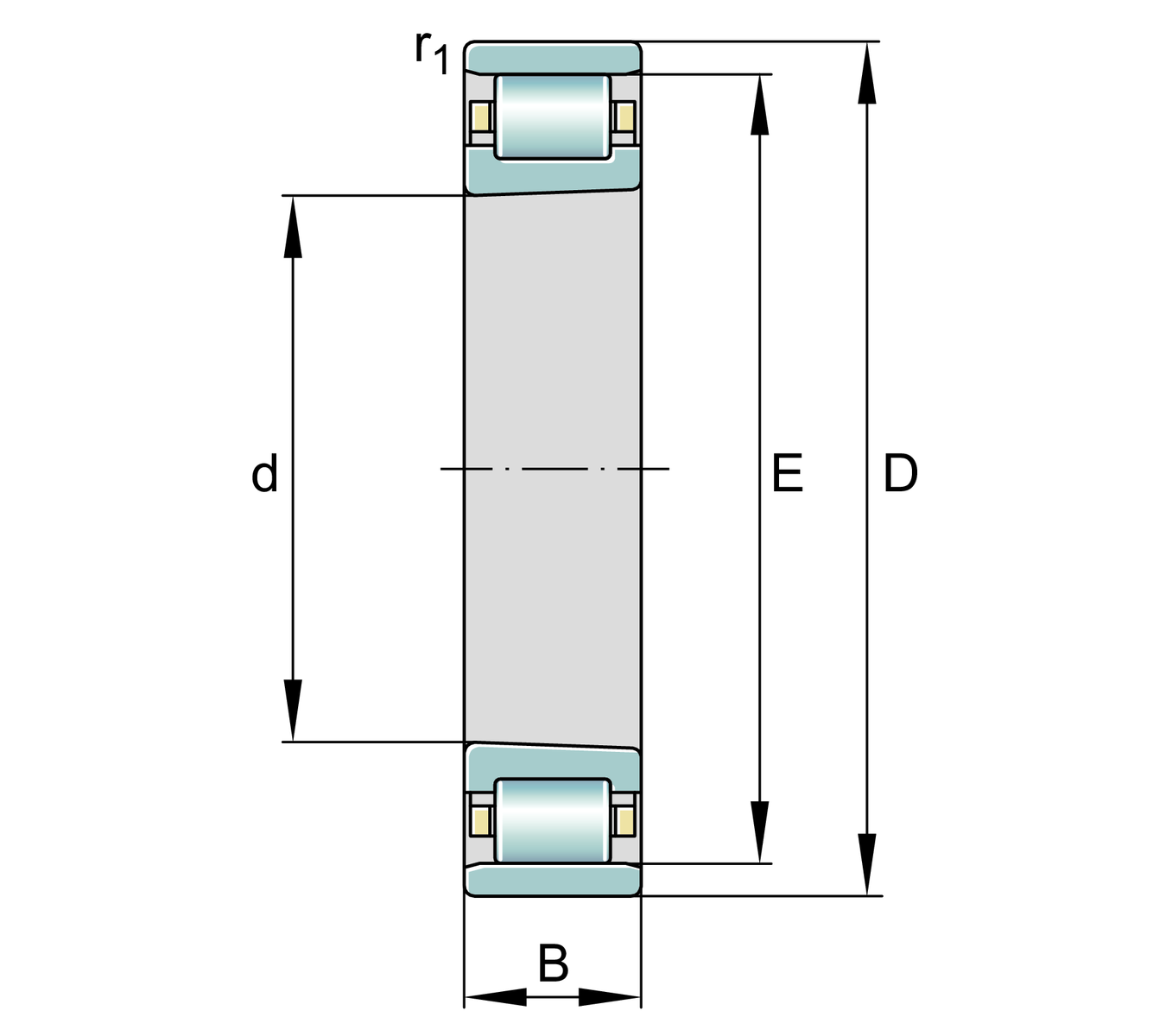

Dimensions
r1 min :1 mm   Minimum chamfer dimension
s1     :3.4 mm   Axial displacement
s2     :3.4 mm   Axial displacement
E     :91 mm  Raceway diameter outer ring
Temperature range
Tmin     :-30 °C  Operating temperature min.
Tmax :120 °C  Operating temperature max.
