Durable high quality 237545/237510 bearing taper roller bearing
Quick Details
Structure: Taper
Type: Roller
Brand Name: SEMRI or OEM
Bore Size: 0 - 174.625 mm
Outside Diameter: 0 - 288.925 mm
Model Number: 234048/234010
Precision Rating: P0 P6 P5 P4 P2
Seals Type: Open
Number of Row: Single Row
Place of Origin: China (Mainland)
Height: 63.5mm
Feature: Stable Performance, low noise
Precision: P0 P6 P5 P4 P2
Material: Gcr15
Quality: 100% Inspection
Service: OEM available
Weight: 16.9kg

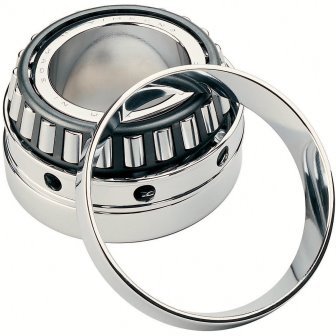

Taper Roller Bearing:
Double row or two-row tapered roller bearings feature double cups and two single cones. They are available in a variety of configurations for general industrial and automotive applications. These bearings are divided into the TDO type which has one double cup and two single-row cones, and the TDI type which has two single-row cups and one double cone. Both accommodate radial and axial loading in both directions. These two also carry moment loads, however, the TDO type is superior to the TDI type, because the distance between load centers is longer in the TDO type. The spacer of the TDO type, or the TDI type, pre-adjusts the internal clearance to provide proper operating clearance after mounting.
High radial and axial loads in one direction Axial loads in both directions when arranged in pairs Medium speeds Small clearance range when bearing pairs are adjusted during mounting Higher permissible speeds by improved raceway surface roughness Metric and imperial dimensions Outer diameters up to 2500 mm cage optimised for large taper roller bearings installed in planetary carriers Hardened high carbon chromium steel.
Technical Specifications:
Bore diameter
174.625mm
Outside diameter
288.925mm
Width
63.5 mm
Model
237545/237510
Tolerance
Normal (PN)
Product performance
H&K
Bore type
Tapered
Number of rows
Two
Cage
Sheet metal
Sealing
None
Radial internal clearance
Group 3 (C3)
Locating feature - bearing outside
None
Relubrication feature
With
Lubricant (in bearing)
None
Material/Treatment
Bearing steel
Dimension type
Metric
