EG Series Linear Guide Rail Bearing seat Guide Rail

2025-01-02
service content：


Guide Bearin Guide Rail roller beari ese ball bea

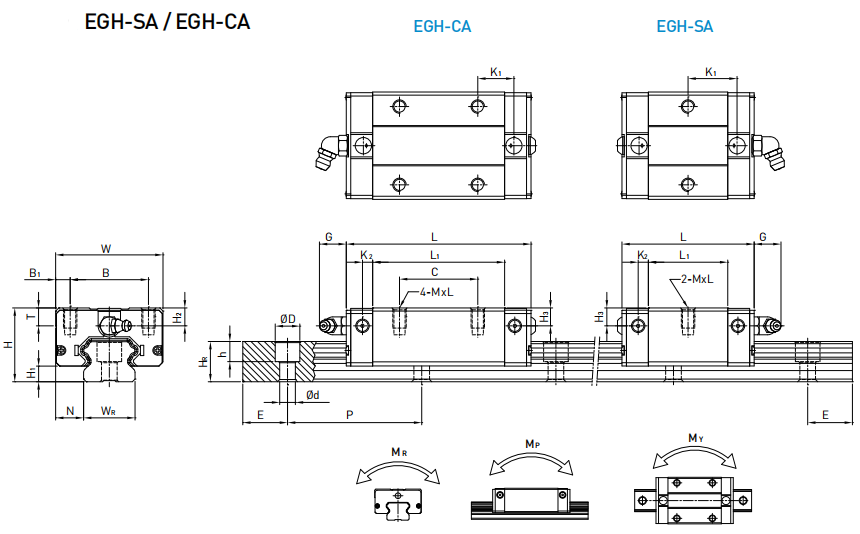

EG Series Linear Guide Rail Bearing seat Guide Rail






Model No.
Dimensions of Assembly (mm)

Dimensions of Block (mm)

Dimensions of Rail (mm)
Mounting Bolt for Rail		 Basic Dynamic Load Rating Basic Static Load Rating
Static Rated Moment
Weight
MR

kN-m		 MP

kN-m		 MY

kN-m		 Block

kg		 Rail

kg/m

H
H1
N
W
B
B1
C
L1
L
K1
K2
G
Mxl
T
H2
H3
WR
HR
D
h
d
P
E
(mm)
C(kN)
C0 (kN)
EGH15SA
24
4.5
9.5
34
26
4		 - 23.1 40.1 14.8
3.5
5.7
M4x6
6
5.5
6
15
12.5
6
4.5
3.5
60
20
M3x16		 5.35 9.40 0.08 0.04 0.04 0.09
1.25
EGH15CA 26 39.8 56.8 10.15 7.83 16.19 0.13 0.10 0.10 0.15
EGH20SA
28
6
11
42
32
5		 - 29 50 18.75
4.15
12
M5x7
7.5
6
6
20
15.5
9.5
8.5
6
60
20
M5x16		 7.23 12.74 0.13 0.06 0.06 0.15
2.08
EGH20CA 32 48.1 69.1 12.3 10.31 21.13 0.22 0.16 0.16 0.24
EGH25SA
33
7
12.5
48
35
6.5		 - 35.5 59.1 21.9
4.55
12
M6x9
8
8
8
23
18
11
9
7
60
20
M6x20		 11.40 19.50 0.23 0.12 0.12 0.25
2.67
EGH25CA 35 59 82.6 16.15 16.27 32.40 0.38 0.32 0.32 0.41
EGH30SA
42
10
16
60
40
10		 - 41.5 69.5 26.75
6
12
M8x12
9
8
9
28
23
11
9
7
80
20
M6x25		 16.42 28.10 0.40 0.21 0.21 0.45
4.35
EGH30CA 40 70.1 98.1 21.05 23.70 47.46 0.68 0.55 0.55 0.76
EGH35SA
48
11
18
70
50
10		 - 45 75 28.5
7
12
M8x12
10
8.5
8.5
34
27.5
14
12
9
80
20
M8x25		 22.66 37.38 0.56 0.31 0.31 0.74
6.14
EGH35CA 50 78 108 20 33.35 64.84 0.98 0.69 0.69 1.10
