FAG 6205-2ZR-C3 Deep Groove Ball Bearing

2017-11-21
service content:


ball bearing deep groove Deep Groove roller beari

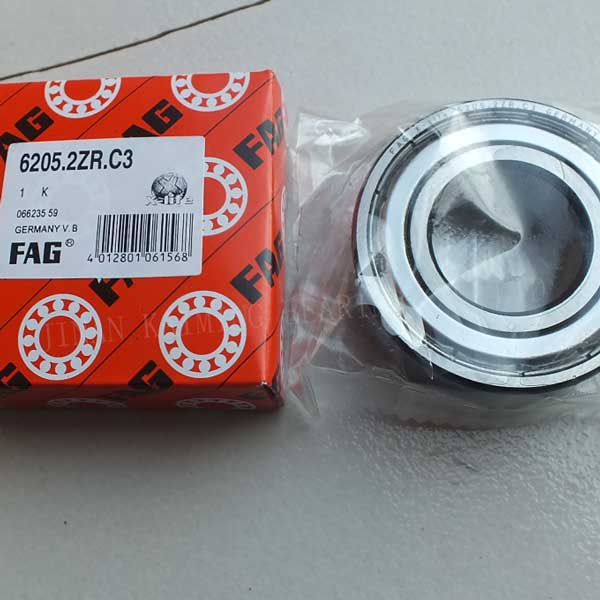

FAG 6205-2ZR-C3 Deep Groove Ball Bearing



· Deep groove geometry for high speeds and supporting both radial and axial loads

· "Light" bearing design for use in limited space applications or for average loads

· C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F

· Sheet steel cage evenly spaces balls for reduced friction, vibration, and noise

· Metal shields on both sides of the bearing keep the lubricant in and contaminants out



This FAG Light 6200 Series single row deep groove ball bearing with a sheet steel cage supports radial loads and axial loads in both directions. It is also suitable for high speed applications. This bearing has a C3 radial internal clearance designation to indicate that the radial slack between the inner and outer rings is greater than the standard CN (normal) clearance. It allows for thermal expansion as the bearing supports radial loads and the balls, operating in the deep raceway geometry, reduce rotational friction. This bearing is rated "Light," making it applicable for average radial loads and light axial loads where space is tight and shaft diameters are relatively large. It can be used to a maximum operating temperature of 120 degrees C/248 degrees F. The inner and outer rings and balls are made of a low-alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads, and the sheet steel cage prevents the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The bearing has a metal shield on either side that is fastened to the outside ring and extends over the rolling elements. The shields assist in keeping out contaminants such as dirt and grime and also help to hold in lubricant applied during manufacturing. This deep groove ball bearing is for use in various applications such as transmissions, motors, pumps, bicycles, and inline skates, among others.







TIANJIN SEMRI BEARING TECHNOLOGY CO.,LTD

If you need any types bearing,please contact us.We will do our best service for you.
