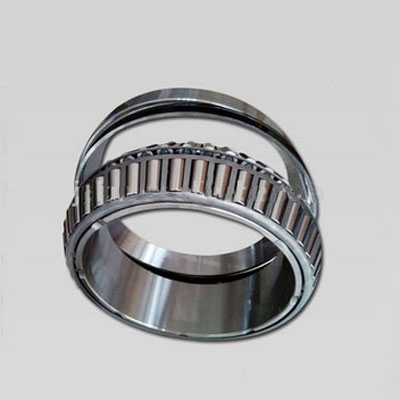

High quality tapered roller bearing 32034X2
Quick Details
Material: GCR15
Model NO.: 32034X2
Products Name Tapered Roller Bearings
Ring material Chrome Steel, Carbon Steel
Material: GCr15 GCr15SiMn
I.D.: 170 mm
O.D.: 260 mm
Thickness: 54 mm
Row Number: Single row
Precision P0,P6,P5,P4,P2
Clearance: C0
Weight: 10.1kgs
Application: Mine machine, port hoisting machine, port transfer equipment, crane; excavator,
concrete machine,paper machine, weave machine, steel and electronic plants etc.
machines and equipments.
Tapered roller bearings consist of four interdependent components: the cone,
or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements;
and the cage, or roller retainer. The taper angles allow the bearing to handle
a combination of radial and thrust loads. The steeper the cup angle, the greater
the ability of the tapered roller bearing to handle thrust loads.
Features:
High quality through hardened bearing steel
Optimized, engineered internal geometry
Highly consistent, reliable, and flexible manufacturing
Globally interchangeable inch and metric designs
Available integrated seal
