Linear Guide Slider Silent Low Group QEH30SAZ0H

2025-01-09
service content：


linear guide QEH30SAZ0H roller beari ese ball bea


QEH30SAZ0H

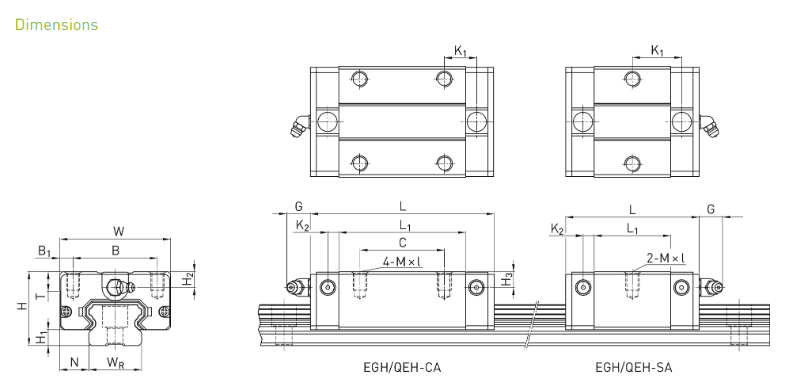

Dimensions
H Total height 42 mm
H1   10 mm
N   16 mm
W Block width 60 mm
B   40 mm
B1   10 mm
L1   41,5 mm
L Block length 67,5 mm
K1   25,75 mm
K2   6 mm
G   12 mm
M   M8
l   12 mm
T   9 mm
H2   8 mm
H3   9 mm
  Mass 0,44 kg

Load ratings and torques
Cdyn Dynamic load rating 26.270 N
C0 Static load rating 27.820 N
M0X Static moment 400 Nm
M0Y Static moment 180 Nm
M0Z Static moment 180 Nm
