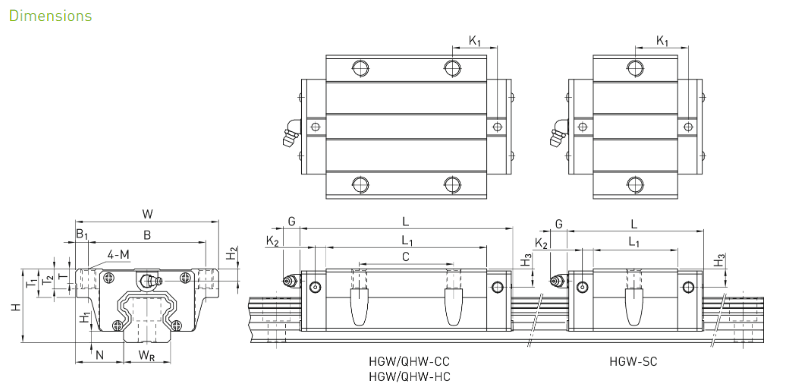

Dimensions | |||
---|---|---|---|
H | Total height | 30 | mm |
H1 | 4,6 | mm | |
N | 21,5 | mm | |
W | Block width | 63 | mm |
B | 53 | mm | |
B1 | 5 | mm | |
C | 40 | mm | |
L1 | 65,2 | mm | |
L | Block length | 91,4 | mm |
K1 | 17,1 | mm | |
K2 | 6 | mm | |
G | 12 | mm | |
M | M6 | ||
T | 8 | mm | |
T1 | 10 | mm | |
T2 | 9,5 | mm | |
H2 | 6 | mm | |
H3 | 6 | mm | |
Mass | 0,52 | kg |
Load ratings and torques | |||
---|---|---|---|
Cdyn | Dynamic load rating | 35.700 | N |
C0 | Static load rating | 42.310 | N |
M0X | Static moment | 310 | Nm |
M0Y | Static moment | 370 | Nm |
M0Z | Static moment | 370 | Nm |
