• semri bearing

R80-20K7-DEBH

2025-03-11
service content:


Ballscrews R80-20K7-DEB roller beari ese ball bea

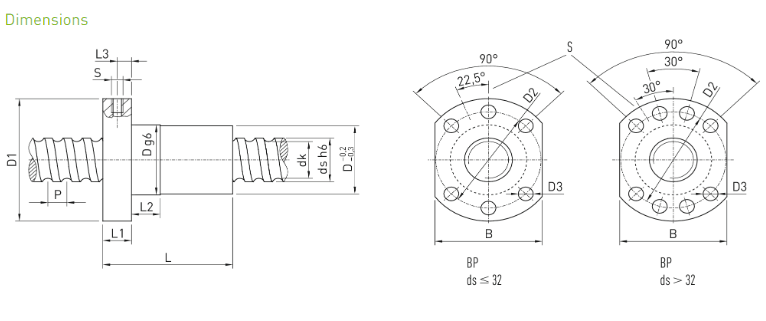

Dimensions
ds Shaft outer diameter 78 mm
D   135 mm
D1   175 mm
D2   155 mm
D3   13,5 mm
  Hole pattern 2
L Nut length 190 mm
L1   25 mm
L2   25 mm
L3   12,5 mm
S   M8 × 1
B   140 mm
dk   68,2 mm
Cdyn Dynamic load rating 346.500 N
C0 Static load rating 1143.000 N
  Axial play max. 0,05 mm
  Mass 13 kg
