Packing Detials:Industrial packing, Single box+carton, or as customer's request
Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

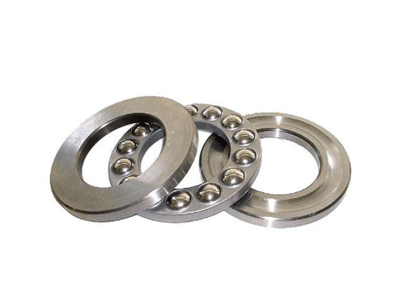

Single direction thrust ball bearing,usually axial load only.chinese bearings,high performance and low price
Bearing Number: | 51222 |
Interchanged No.: | 8222 |
Brand: | SEMRI or OEM |
Size (mm): | 110 x 160 x 38 |
Material: | chrome steel or stainless steel or carbon steel |
Precision: | P0 P6 P5 P4 |
Clearence: | black or natural |
Cage: | steel or brass |
Weight (Kg): | 2.57 |
Country of Origin: | CHINA |
Certification: | ISO9001 |

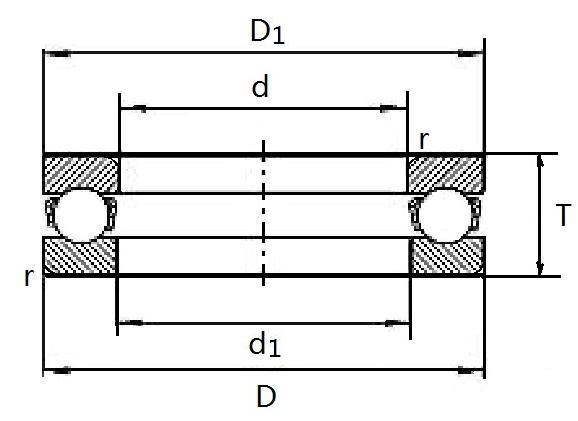

New number | Old number | Main Dimension | Load rating / KN | maximum speed | Weight | ||||
d (mm) | D (mm) | T (mm) |
Dynamic C |
Static C0 |
Grease r/min |
Oil r/min |
approximate KG |
||
51200 | 8200 | 10 | 26 | 11 | 12.7 | 17.1 | 5700 | 8800 | 0.03 |
51201 | 8201 | 12 | 28 | 11 | 13.2 | 19 | 5400 | 8300 | 0.034 |
51202 | 8202 | 15 | 32 | 12 | 16.6 | 24.8 | 4900 | 7500 | 0.046 |
51203 | 8203 | 17 | 35 | 12 | 17.2 | 27.3 | 4900 | 7500 | 0.053 |
51220 | 8220 | 100 | 150 | 38 | 147 | 410 | 1200 | 1900 | 2.36 |
51222 | 8222 | 110 | 160 | 38 | 148 | 431 | 1200 | 1800 | 2.57 |
51224 | 8224 | 120 | 170 | 39 | 154 | 472 | 1100 | 1700 | 2.86 |
51226 | 8226 | 130 | 190 | 45 | 203 | 622 | 970 | 1500 | 4.09 |
51228 | 8228 | 140 | 200 | 46 | 215 | 669 | 940 | 1450 | 4.46 |
51230 | 8230 | 150 | 215 | 50 | 244 | 768 | 840 | 1300 | 5.64 |
