Bore Size: 0 - 70 mm
Outside Diameter: 0 - 125 mm
Model Number: 32214
Height: 24mm

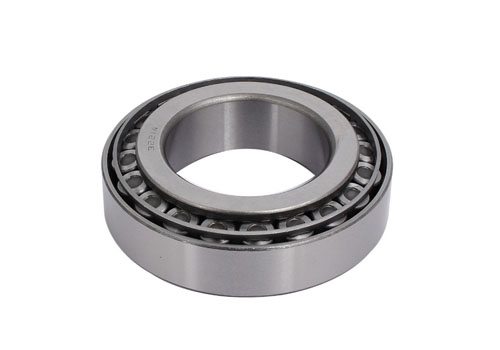

Type of goods: taper roller bearing 32214
Weight: 1.3kgs
Tapered Roller Bearings 32214 are further classified into:
1. Single Row
A Single Row Tapered Roller Bearing can support combined radial and axial load. However, if an application has a bi-directional axial load, then two single row tapered roller bearings can be used together in a back-to-back or face-to-face mounting pattern.
2. Double Row
Double Row Tapered Roller Bearings are specially made to sustain radial and bi-directional axial loads.
3. Four Row
Four Row Tapered Roller Bearings can support much heavier radial and impact loads, in addition to standard capabilities of a Double Row Tapered Roller Bearings. Suitable for very high load applications.
Technical specifications:
Products name
Single row taper roller bearing 32214
Brand
Series
32214
ID size
70 ID X 125 OD X 31 Width
Cage material
Steel , brass , Iron , plastic
Precision
PO P6 P5 P4 P2
Sealing
C3 C4 C1 C2 C0
Quality standard
ISO9001:2000 standard
Service
OEM ODM service
Delivery date
Normally ready goods and stock winthin 5 days
Payment terms
T/T, L/C, Western Union or Paypal
