Bore Size: 0 - 85 mm
Outside Diameter: 0 - 150 mm
Model Number: 32217
Height: 36mm
Type of goods: taper roller bearing 32217
Weight: 2.68kgs
Tapered Roller Bearings 32217 are further classified into:
1. Single Row
A Single Row Tapered Roller Bearing can support combined radial and axial load. However, if an application has a bi-directional axial load, then two single row tapered roller bearings can be used together in a back-to-back or face-to-face mounting pattern.
2. Double Row
Double Row Tapered Roller Bearings are specially made to sustain radial and bi-directional axial loads.

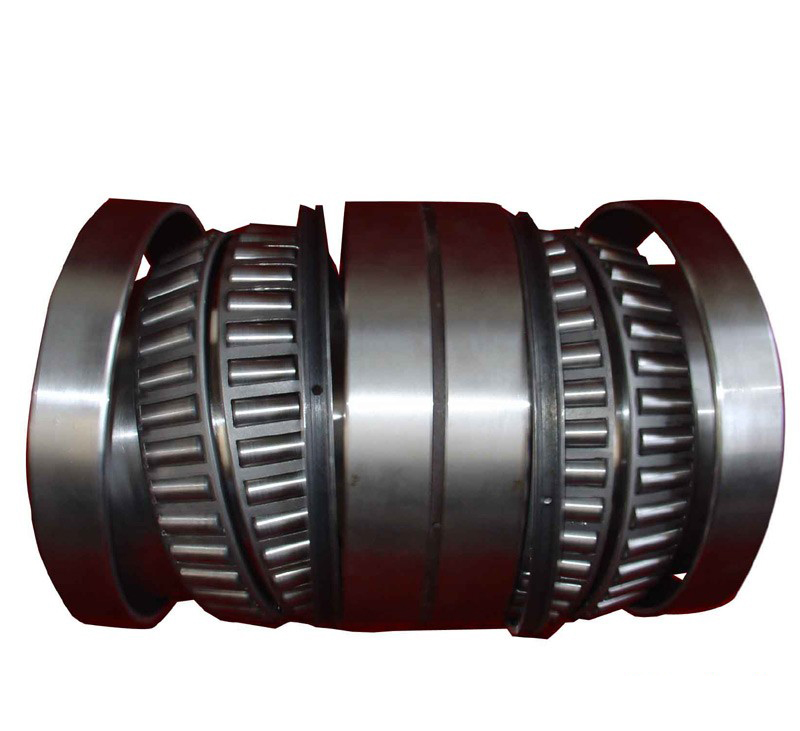

3. Four Row
Four Row Tapered Roller Bearings can support much heavier radial and impact loads, in addition to standard capabilities of a Double Row Tapered Roller Bearings. Suitable for very high load applications.
We can offer the following variants:
· 302xx, 303xx, 313xx, 320xx, 322xx, 323xx and 329xx series
· Double Row Tapered Roller Bearings Series (Details can be provide on request)
· Pressed steel and polyamide cage
· Standard precision P0 and higher precision P6.
· Wide range of Inch type bearings is also available.
Technical specifications:
Products name
Single row taper roller bearing 32217
Brand
TIMKEN, NSK OR SEMRI
Series
32217
size
85X150X36mm
Cage material
Steel , brass , Iron , plastic
Precision
PO P6 P5 P4 P2
Sealing
C3 C4 C1 C2 C0
Quality standard
ISO9001:2000 standard
Service
OEM ODM service
Delivery date
Normally ready goods and stock winthin 5 days
Payment terms
T/T, L/C, Western Union or Paypal
Package
single color box
TIANJIN SEMRI BEARING TECHNOLOGY CO.,LTD
If you need any types bearing,please contact us.We will do our best service for you.
