Bore Size: 0 - 90 mm
Outside Diameter: 0 - 160 mm
Model Number: 22218
Weight: 4.0kgs
Width: 40mm

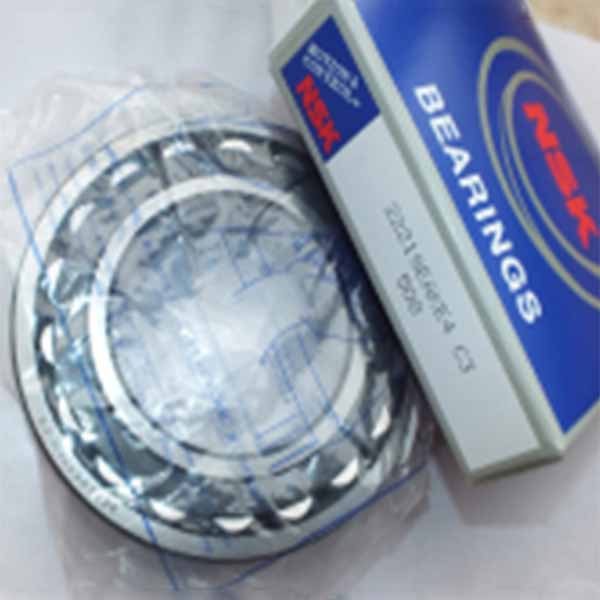

Spherical roller bearing:
1.Kinds :bore is the taper K ; and vice versa; tank in the out ring W33
2.Dimensions rage: inter diameter 90mm~~outer diameter 920mm
3.Basic types: 21000; 22000; 23000; 24000; and so on.
4.Cage: brass cage or steel cage
5.Application: wheel, large size agriculture machinery,main shaft of machine tool,
deceleration device of railway gear box, roll machine and so on
Bearing Series:
Spherical Roller Bearing CC series
Spherical Roller Bearing CA series
Spherical Roller Bearing CAE series
Spherical Roller Bearing MB series
Spherical Roller Bearing E series
We can offer the following variants:
1. Single Row type – 202 series (details available on request)
2. Double Row type – 213, 222, 223, 230, 231, 232, 239, 240, 241 Series
3. Large product range from 25mm ID to 850mm ID
4. with C2, CN, C3 and C4 radial clearance
5. Pressed steel or single piece and split type machined brass cage
6. With oil groove and oil hole (W33) design
7. Standard precision grade P0 and higher precision grade P6.
8. Spherical plain type bearings – GE Series in open and 2RS type design.
TIANJIN SEMRI BEARING TECHNOLOGY CO.,LTD
If you need any types bearing,please contact us.We will do our best service for you.
