Structure: Taper
Type: Roller

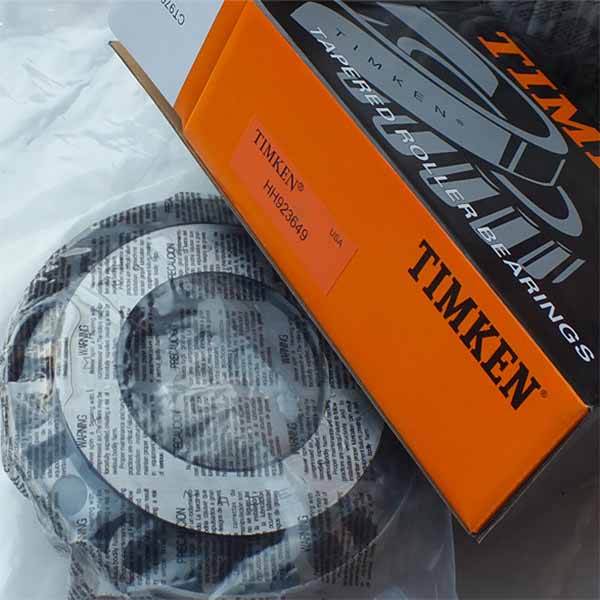

Brand Name: Timken
Bore Size: 152.4mm
Outside Diameter: 222.25mm
Height: 88.9mm
Description:
Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.
Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.
Tapere roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.
Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.
Model No.
Taper roller bearing
Number of row
Single row,Double row,Inch,Four row
Material
Chrome steel, Carbon steel,Stainless steel
Lubrication
Oil,Greese
Hardness
60-64HRC
Seal
Open
Precision
p0/p6/p5/p4/p2
Cage material
Steel,Brass,Nylon
Inner size
152.4mm
Outer size
