Yoke type track rollers RSTO10
Your current product variant
Sealing ：without
Out Ring profile ： R500 R500
Relubrication feature: IR Via inner ring lubrication hole
Main Dimensions & Performance Data
Fw :14 mm Under roller diameter
D ： 30mm Under roller diameter
C ： 11.8mm Width, inner ring
Cr w ：8,800 N Basic dynamic load rating, radial
C0r w：9,900N Basic static load rating, radial
Cur w： 1,470 N Fatigue load limit, radial
nD G ： 5,500 1/min Speed on permanent grease lubrication
F0r per：15,900 N Permissible static load, radial
Fr per： 14,900 N Permissible dynamic load outer ring, radial
≈m ： 44.17g Weight

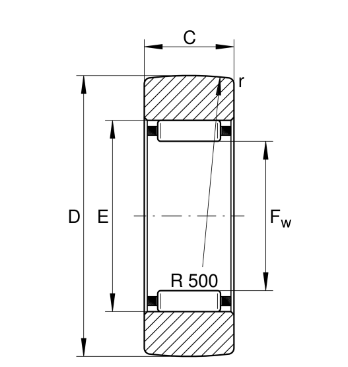

Dimensions
E : 20mm Raceway diameter outer ring
rmin ：0.3 mm Minimum chamfer dimension
F : 16 mm Raceway diameter inner ring
R ：500 mm Radius of outer ring outside profile
