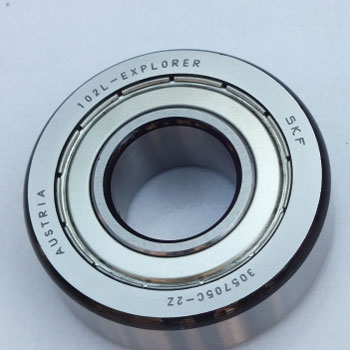

Adequate supply angular contact ball bearing 305705
Quick Details

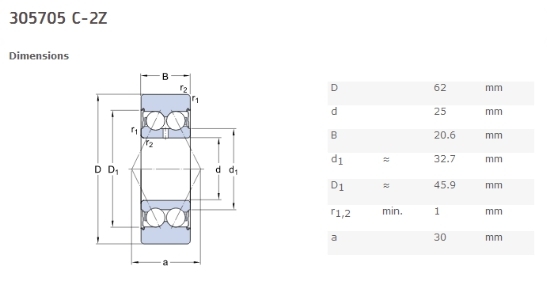

Structure:angular contact
Type:ball
Bore size:25mm
Outside diameter:62mm
Width:20.6mm
Brand: NSK FAG INA NSK KOYO NTN
Number of Row:single
Place of origin:Sweden
Seals type:open,sealed
The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. The retainer is made of brass, synthetic resin of others subject to individual bearing's features and application conditions.
