Widespread use angular contact ball bearing 7002

2018-03-27
service content:


Semri Bearing high temperature

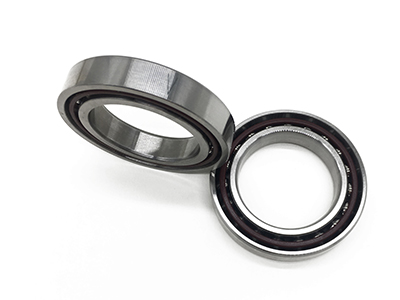

Widespread use angular contact ball bearing 7002

Quick Details

Structure:angular contact



Type:ball

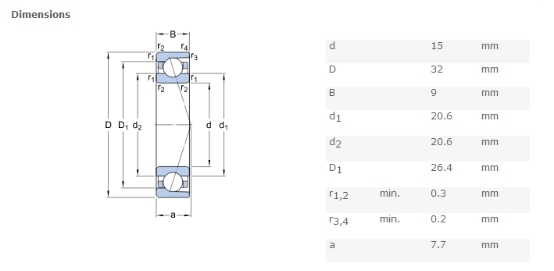

Bore size:15mm

Outside diameter:32mm

Width:9mm

Brand: NSK FAG INA NSK KOYO NTN …

Number of Row:single

Place of origin:Sweden

Seals type: open,sealed









Name

Angular contact ball bearing





Quality standard

ISO9001:2000 standard





Delivery  date

Normally ready goods and stock





Payment terms

T/T, Paypal, Western Union, Moneygram





Application

automotive, rolling mill, mining, metallurgical,

plastic machinery,etc.





Package

a. According to customer's requirements.

b. Original TIMKEN NSK NTN KOYO IKO good quality  packaging.

c. Laser mark on the bearing.

d. Bearing wrapped by vacuum packaging.

industrial standard packag





The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis. The retainer is made of brass, synthetic resin of others subject to individual bearing's features and application conditions.
