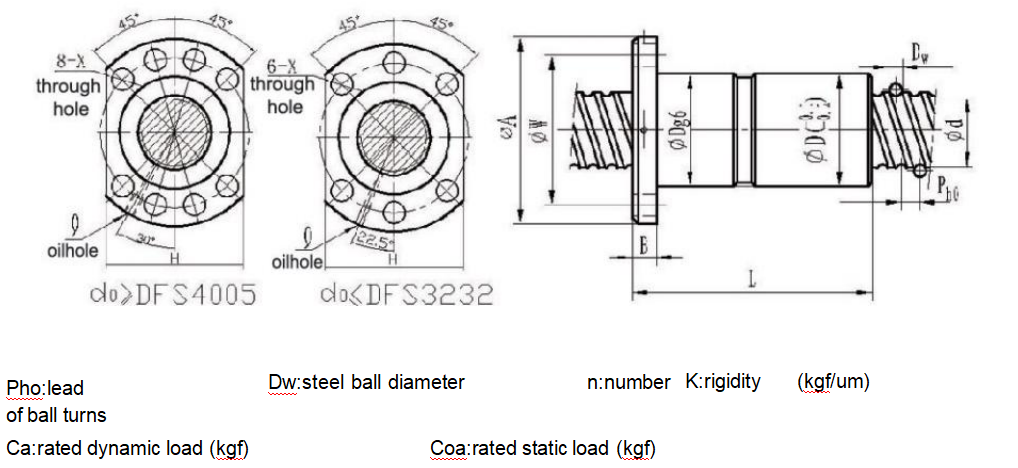

Specifications and models |
d |
Pho |
Dw |
D |
A |
B |
L |
W |
H |
X |
Q |
n |
Ca |
Coa |
K |
|
DFS01605-3.8 |
15 |
5 |
2.778 |
28 |
48 |
10 |
73 |
38 |
40 |
5.5 |
M6 |
3.8X1 |
771 |
1536 |
39 |
|
DFS01610-2.8 |
15 |
10 |
2.778 |
28 |
48 |
10 |
97 |
38 |
40 |
5.5 |
M6 |
2.8X1 |
592 |
1131 |
28 |
|
DFS02005-3.8 |
20 |
5 |
3.175 |
36 |
58 |
10 |
75 |
47 |
44 |
6.6 |
M6 |
3.8X1 |
1027 |
2229 |
51 |
|
DFS02010-3.8 |
20 |
10 |
3.175 |
36 |
58 |
10 |
120 |
47 |
44 |
6.6 |
M6 |
3.8X1 |
1049 |
2340 |
51 |
|
DFS02505-3.8 |
25 |
5 |
3.175 |
40 |
62 |
10 |
75 |
51 |
48 |
6.6 |
M6 |
3.8X1 |
1133 |
2786 |
64 |
|
DFS02510-3.8 |
25 |
10 |
3.175 |
40 |
62 |
12 |
122 |
51 |
48 |
6.6 |
M6 |
3.8X1 |
1133 |
2786 |
64 |
|
DFS03205-.38 |
32 |
5 |
3.175 |
50 |
80 |
12 |
82 |
65 |
62 |
9 |
M6 |
3.8X1 |
1263 |
3567 |
81 |
|
DFS03210-3.8 |
31 |
10 |
3.969 |
50 |
80 |
13 |
122 |
65 |
62 |
9 |
M6 |
3.8X1 |
1693 |
4354 |
79 |
|
DFS03220-2.8 |
31 |
20 |
3.969 |
50 |
80 |
12 |
160 |
65 |
62 |
9 |
M6 |
2.8X1 |
1324 |
3337 |
58 |
|
DFS04005-3.8 |
40 |
5 |
3.175 |
63 |
93 |
15 |
85 |
78 |
70 |
9 |
M8x1 |
3.8X1 |
1393 |
4458 |
101 |
|
DFS04010-3.8 |
38 |
10 |
6.35 |
63 |
93 |
14 |
123 |
78 |
70 |
9 |
M8x1 |
3.8X1 |
3396 |
8471 |
98 |
|
DFS04020-2.8 |
38 |
20 |
6.35 |
63 |
93 |
14 |
162 |
78 |
70 |
9 |
M8x1 |
2.8X1 |
2750 |
6570 |
72 |
|
DFS05005-3.8 |
50 |
5 |
3.175 |
75 |
110 |
15 |
85 |
93 |
85 |
11 |
M8X1 |
3.8X1 |
1537 |
5573 |
125 |
|
DFS05010-3.8 |
48 |
10 |
6.35 |
75 |
110 |
18 |
138 |
93 |
85 |
11 |
M8X1 |
3.8X1 |
3875 |
10701 |
123 |
|
DFS05020-3.8 |
48 |
20 |
6.35 |
75 |
110 |
18 |
218 |
93 |
85 |
11 |
M8X1 |
3.8X1 |
3945 |
11147 |
123 |
|
DFS06310-3.8 |
61 |
10 |
6.35 |
90 |
125 |
18 |
140 |
108 |
95 |
11 |
M8X1 |
3.8X1 |
4147 |
12484 |
155 |
|
DFS06320-3.8 |
61 |
20 |
7.144 |
95 |
135 |
20 |
226 |
115 |
100 |
13.5 |
M8X1 |
3.8X1 |
4877 |
14109 |
155 |
|
DFS08010-3.8 |
77 |
10 |
6.35 |
105 |
145 |
20 |
140 |
125 |
110 |
13.5 |
M8X1 |
3.8X1 |
4632 |
16051 |
194 |
|
DFS08020-3.8 |
77 |
20 |
9.525 |
125 |
165 |
25 |
230 |
145 |
130 |
13.5 |
M8X1 |
3.8X1 |
9283 |
31416 |
196 |
|
DFS10020-3.8 |
96 |
20 |
12.7 |
150 |
202 |
30 |
244 |
176 |
155 |
17.5 |
M8X1 |
3.8X1 |
12725 |
37454 |
246 |
