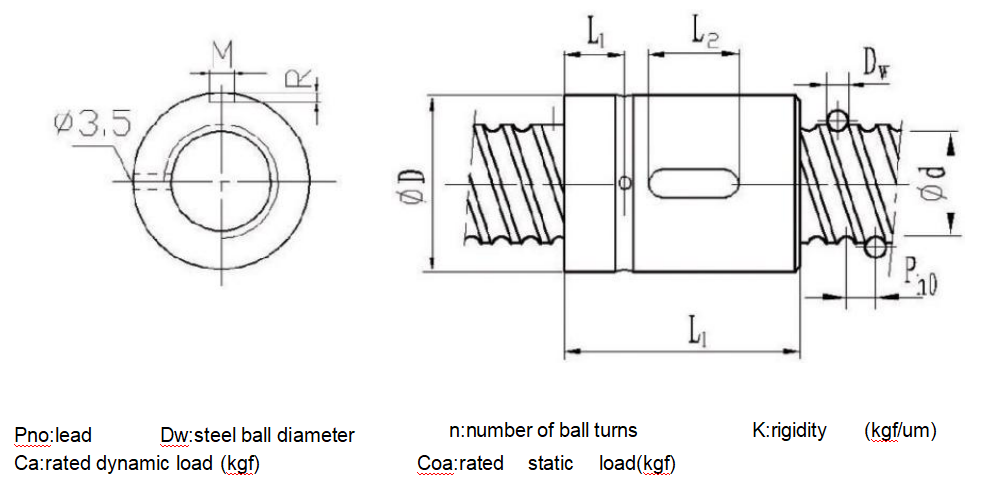

Internal Circulation Series Ball Screw SCI

Specifications and models

d

Ph

Dw

D

L

L1

L2

M

R


n

Ca

Coa

K

SCI01604-4

16

4

2.381

30

40

9

15

3

1.5

4

640

1340

16

SCI01605-4

16

5

3.175

30

45

9

20

5

3

4

780

1790

20

SCI02004-4

20

4

2.381

34

40

9

15

3

1.5

4

670

1480

25

SCI02005-4

20

5

3.175

34

45

9

20

5

3

4

1130

2380

25

SCI02504-4

25

4

2.381

40

40

9

15

3

1.5

4

760

1950

31

SCI02505-4

25

5

3.175

40

45

9

20

5

3

4

1280

3110

35

SCI02510-4

25

10

4.763

46

85

13

30

5

3

4

1944

3877

33

SCI03204-4

32

4

2.381

46

40

9

15

3

1.5

4

860

3050

40

SCI03205-4

32

5

3.175

46

45

9

20

5

3

4

1450

4150

40

SCI03210-4

32

10

6.35

54

85

13

30

5

3

4

3390

7170

40

SCI04005-4

40

5

3.175

56

45

9

20

5

3

4

1610

5330

49

SCI04010-4

40

10

6.35

62

85

13

30

5

3

4

3910

9520

50

SCI05010-4

50

10

6.35

72

85

13

30

5

3

4

4450

12500

65

SCI06310-4

63

10

6.35

85

85

13

30

6

3.5

4

5070

16600

80

SCI08010-4

80

10

6.35

105

85

13

30

8

4.5

4

5620

21300

90
