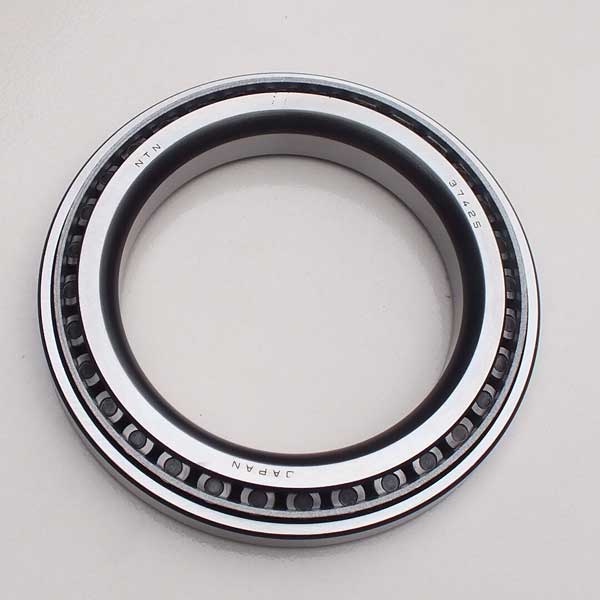

Inch taper roller bearing 37425/37625
Quick Details:
Structure:taper
Type:roller
Inner diameter:107.95mm
Outer diameter:158.75mm
Width:23.02mm
Brand: FAG INA NSK KOYO NTN HRB ZWZ…
Number of Row:single row
Place of origin:Sweden
Seals type:open,sealed
Description:
Inch Tapered roller bearings is refers to the dimensions are in inches as a unit of measurement of the tapered roller bearings, the source from the Anglo American countries.
Tapered roller bearings inside, the outer ring has a tapered raceways, raceway fitted between the tapered roller. If tapered surface extending eventually converge to a point on the bearing axis. Tapered roller bearings are mainly used to bear radial load mainly radial, axial joint load. Axial bearing capacity by the contact angle, the greater the reach, the greater the axial load capacity Tapered roller bearings for the separation of bearings, with roller and cage inner ring inner components can be installed separately from the outer ring This kind of bearing shell limit the axis or axial displacement side allowed tilt axis relative to shell hole. In the radial load, it will produce additional axial force, therefore, generally in two support bearings, the bearing outer ring and inner ring with the face should be relatively installation.
