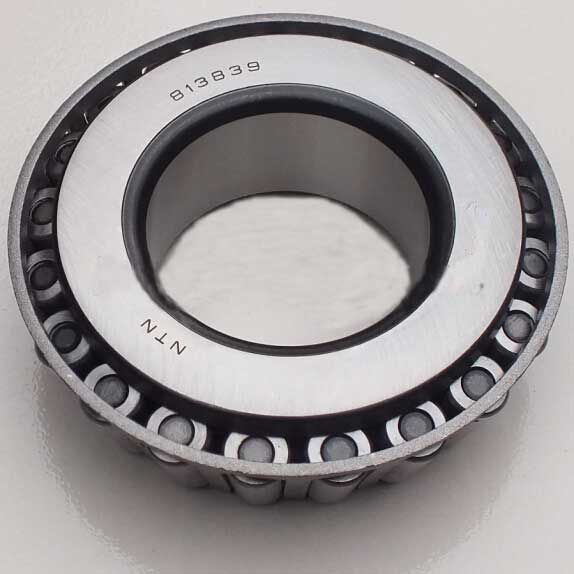

Reliable performance Taper Roller Bearing 813839
Quick Details
Structure: Taper
Type: Roller
Brand Name: Import brand
Bore Size: 1 - 100 mm
Outside Diameter: 1 - 100 mm
Model Number: Bearing 813839
Precision Rating: P0 P5 P6
Seals Type: OPEN
Number of Row: Single Row
Place of Origin: Germany
Model: Bearing 813839
Certificate: ISO9001:2000,C/Q
Vibration: V1, V2, V3, V4
Clearance: C0 C2 C3 C4 C5
Service: OEM accept
sample: available
Weight: 5.8kg
Width: 43mm
Main Market: Europe, Asia,Mid East,South America, Africa,etc
Inner diameter: 90mm
Taper roller bearings have tapered inner and outer ring raceways between which tapered rollers are arranged. The projection lines of all the tapered surfaces meet at a common point on the bearing axis. Their design makes taper roller bearings particularly suitable for the accommodation of combined ( radial and axial) loads .
1. tapered roller bearing classification
1).single-row tapered roller bearing
2).double-row tapered roller bearing
3).four-row tapered roller bearing
2. Tapered roller bearing range of use:
Tapered roller bearing is widely used in automotive, rolling mill, mining, metallurgical, plastic machinery and other industries
3. About Tapered roller bearing :
1) Types: 30 series, 31 series, 32 series, 33 series, .
2) Corresponding models range :30203-30209,30302-30330, 32004x-32022x, 32204-32234, 33205-33210, 33008- 33022,
3).range of sizes:
Single row tapered roller bearing: Inside diameter size: 20 mm ~ 1270 mm
Outside diameter size range: 40 mm ~ 1465 mm
The width size range: 15 mm ~ 240 mm
Double row circular cone roller bearings: Inside diameter size range: 38 mm ~ 1560 mm
Outside diameter size: 70 mm ~ 1800 mm
The width size range: 50 mm ~ 460 mm
Four row circular cone roller bearings: Inside diameter size range: 130 mm ~ 1600 mm
Outside diameter size: 200 mm ~ 2000 mm
The width size range: 150 mm ~ 1150 mm
