MGN-C/MGN-H Miniature Linear Guideway

2025-01-03
service content：


roller beari ese ball bea

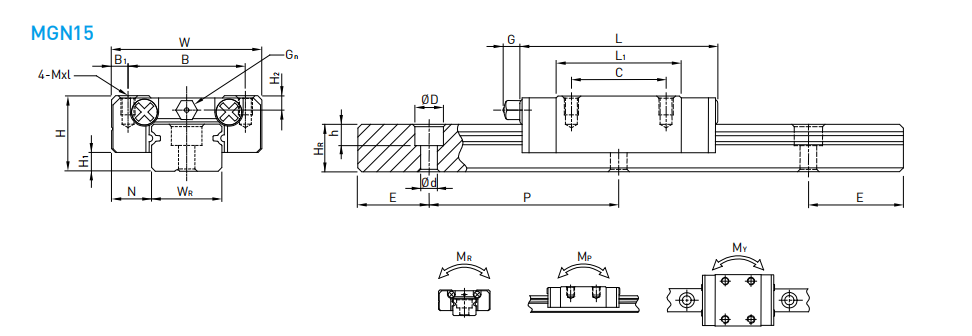

Model No.		 Dimensions of Assembly (mm)
Dimensions of Block (mm)
Dimensions of Rail (mm)		 Mounting Bolt for Rail Basic Dynamic Load Rating Basic Static Load Rating Static Rated Moment
Weight
MR
N-m		 MP
N-m		 MY
N-m		 Block kg Rail kg/m
H H1 N W B B1 C L1 L L Max
(Note3)		 G Gn Mxl H2 WR HR D h d P E (mm) C(kN) C0 (kN)
MGN 2C 3.2 0.7 2 6 - 3 4 9.4 12.5 12.5 - - M1.4 THRU - 2 2 M1 THRU 8 4 M1 0.22 0.4 0.42 0.63 0.63 0.001 0.03
MGN 3C
4
1
2.5
8
-
4		 3.5 7 11.3 11.3
-
-		 M1.6x1.3
-
3
2.6
M1.6 THRU
10
5
M1.6		 0.29 0.44 0.7 0.5 0.5 0.001
0.05
MGN 3H 5.5 11 15.3 15.3 M2x1.3 0.39 0.68 1.0 1.3 1.3 0.002
MGN 7C
8
1.5
5
17
12
2.5		 8 13.5 22.5 23.1
-
Ø1.2
M2x2.5
1.5
7
4.8
4.2
2.3
2.4
15
5
M2x6		 0.98 1.24 4.70 2.84 2.84 0.010
0.22
MGN 7H 13 21.8 30.8 31.4 1.37 1.96 7.64 4.80 4.80 0.015
MGN 9C
10
2
5.5
20
15
2.5		 10 18.9 28.9 29.9
-
Ø1.4
M3x3
1.8
9
6.5
6
3.5
3.5
20
7.5
M3x8		 1.86 2.55 11.76 7.35 7.35 0.016
0.38
MGN 9H 16 29.9 39.9 40.9 2.55 4.02 19.60 18.62 18.62 0.026
MGN 12C
13
3
7.5
27
20
3.5		 15 21.7 34.7 35.1
-
Ø2
M3x3.5
2.5
12
8
6
4.5
3.5
25
10
M3x8		 2.84 3.92 25.48 13.72 13.72 0.034
0.65
MGN 12H 20 32.4 45.4 45.8 3.72 5.88 38.22 36.26 36.26 0.054
MGN 15C
16
4
8.5
32
25
3.5		 20 26.7 42.1 42.7
4.5
M3
M3x4
3
15
10
6
4.5
3.5
40
15
M3x10		 4.61 5.59 45.08 21.56 21.56 0.059
1.06
MGN 15H 25 43.4 58.8 59.4 6.37 9.11 73.50 57.82 57.82 0.092
