Model No. |

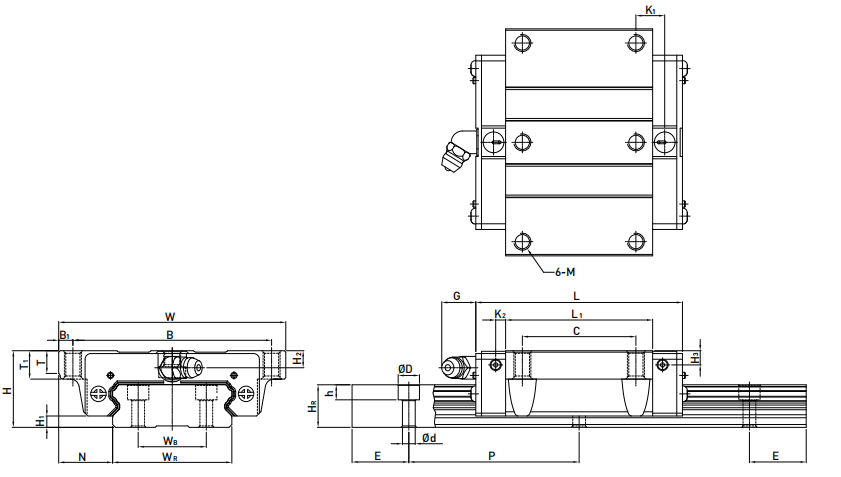

Dimensions of Assembly (mm) |
Dimensions of Block (mm) |
Dimensions of Rail (mm) |
Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment |
Weight |
|||||||||||||||||||||||||
|
MR kN-m |
MP kN-m |
MY kN-m |
Block kg | Rail kg/m | |||||||||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | M | T | T1 | H2 | H3 | WR | WB | HR | D | h | d | P | E | (mm) | C(kN) | C0 (kN) | ||||||
| WEW17CC | 17 | 2.5 | 13.5 | 60 | 53 | 3.5 | 26 | 35 | 50.6 | - | 3.1 | 4.9 | M4 | 5.1 | 6 | 4 | 3 | 33 | 18 | 9.3 | 7.5 | 5.3 | 4.5 | 40 | 15 | M4x12 | 5.23 | 9.64 | 0.15 | 0.062 | 0.062 | 0.13 | 2.2 |
| WEW21CC | 21 | 3 | 15.5 | 68 | 60 | 4 | 29 | 41.7 | 59 | 9.68 | 3.65 | 12 | M5 | 7.3 | 8 | 4.5 | 4.2 | 37 | 22 | 11 | 7.5 | 5.3 | 4.5 | 50 | 15 | M4x12 | 7.21 | 13.7 | 0.23 | 0.10 | 0.10 | 0.23 | 3.0 |
| WEW27CC | 27 | 4 | 19 | 80 | 70 | 5 | 40 | 51.8 | 72.8 | 10.15 | 3.5 | 12 | M6 | 8 | 10 | 6 | 5 | 42 | 24 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 12.4 | 21.6 | 0.42 | 0.17 | 0.17 | 0.43 | 4.7 |
| WEW35CC | 35 | 4 | 25.5 | 120 | 107 | 6.5 | 60 | 77.6 | 102.6 | 13.35 | 5.25 | 12 | M8 | 11.2 | 14 | 8 | 6.5 | 69 | 40 | 19 | 11 | 9 | 7 | 80 | 20 | M6x20 | 29.8 | 49.4 | 1.48 | 0.67 | 0.67 | 1.26 | 9.7 |
| WEW50CC | 50 | 7.5 | 36 | 162 | 144 | 9 | 80 | 112 | 140 | 20.55 | 6 | 12.9 | M10 | 14 | 18 | 12 | 10.5 | 90 | 60 | 24 | 14 | 12 | 9 | 80 | 20 | M8x25 | 61.52 | 97.1 | 4.03 | 1.96 | 1.96 | 3.71 | 15.5 |
