SEMRI Track Rollers LR5206-2Z-TVH-XL Your current product variant
Sealing ： 2Z Sealing shield on both sides
Outer Ring profile ：R500 R500
Relubrication feature： Without Without
Cage ： TVH solid cage made of glass-fiber reinforced polyamid PA66
Main Dimensions & Performance Data
D ：72 mm Outside diameter
d ： 30 mm Bore diameter
C ： 23.8 mm Height
Cr w ： 26,500 N Basic dynamic load rating, radial
C0r w： 22,000 N Basic static load rating, radial
Cur w： 1.140 N Fatigue load limit, radial
nD G ： 5,500 1/min Speed on permanent grease lubrication
Fr per： 22,000 N Permissible dynamic load outer ring, radial
≈m ： 0.51kg Weight

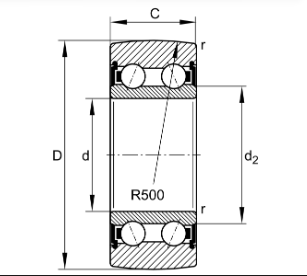

Dimensions
d2 ：40.3 mm Diameter of thrust washer
Rmin ：1 mm Minimum chamfer dimension
R ：500 mm Radius of outer ring outside profile
