Stud Type Track Rollers LR203-X-2RSR Your current product variant
Sealing ： 2RSR Lip seal on both sides, with radial sealing action
Outer Ring profile ： X Cylindrical profile
Relubrication feature： Without Without
Main Dimensions & Performance Data
D ： 47 mm Outside diameter
d ： 17 mm Bore diameter
C ： 12 mm Height
Cr w ： 8,900 N Basic dynamic load rating, radial
C0r w： 4,550 N Basic static load rating, radial
Cur w： 229 N Fatigue load limit, radial
nD G ： 9,000 1/min Speed on permanent grease lubrication
Fr per： 7,700 N Permissible dynamic load outer ring, radial
≈m ： 0.109 kg Weight

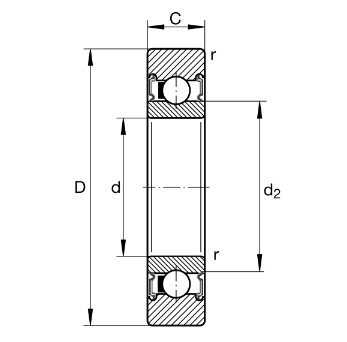

Dimensions
d2 ：24 mm Diameter of thrust washer
Rmin ：0.6 mm Minimum chamfer dimension
R ：500 mm Radius of outer ring outside profile
