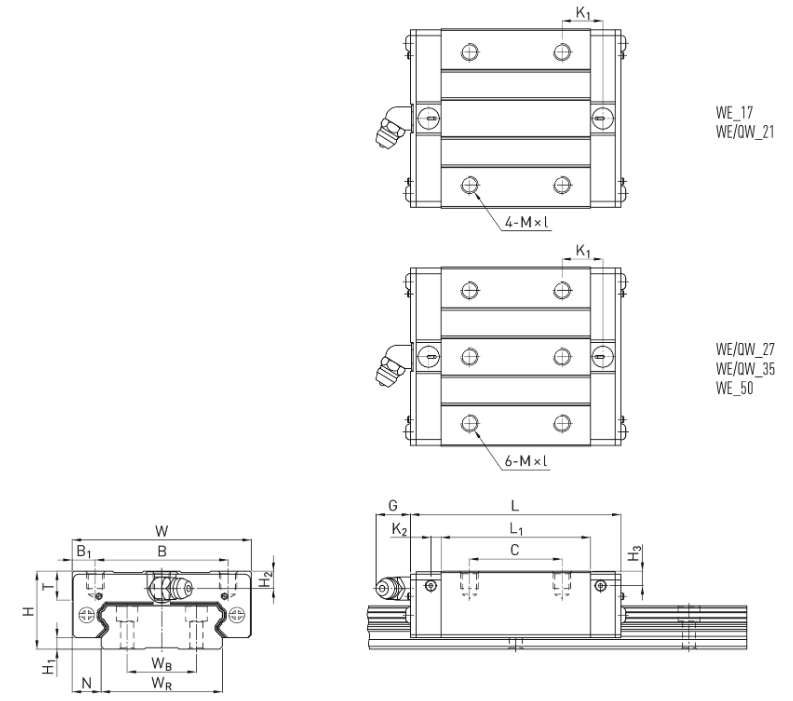

| Dimensions | |||
| H | Total height | 50 | mm |
| H1 | 7,5 | mm | |
| N | 20 | mm | |
| W | Block width | 130 | mm |
| B | 100 | mm | |
| B1 | 15 | mm | |
| C | 65 | mm | |
| L1 | 112 | mm | |
| L | Block length | 140 | mm |
| K1 | 28,05 | mm | |
| K2 | 6 | mm | |
| G | 12,9 | mm | |
| M | M10 | ||
| l | 15 | mm | |
| T | 19,5 | mm | |
| H2 | 12 | mm | |
| H3 | 10,5 | mm | |
| Mass | 3,16 | kg | |
| Load ratings and torques | |||
| Cdyn | Dynamic load rating | 61.520 | N |
| C0 | Static load rating | 97.000 | N |
| M0X | Static moment | 4.030 | Nm |
| M0Y | Static moment | 1.960 | Nm |
| M0Z | Static moment | 1.960 | Nm |
