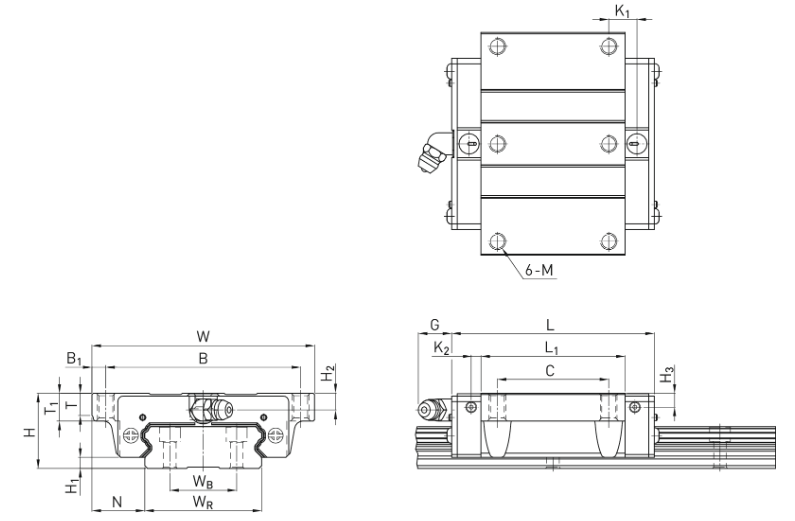

| Dimensions | |||
| H | Total height | 17 | mm |
| H1 | 2,5 | mm | |
| N | 13,5 | mm | |
| W | Block width | 60 | mm |
| B | 53 | mm | |
| B1 | 3,5 | mm | |
| C | 26 | mm | |
| L1 | 35 | mm | |
| L | Block length | 50,6 | mm |
| K2 | 3,1 | mm | |
| G | 4,9 | mm | |
| M | M4 | ||
| T | 5,3 | mm | |
| T1 | 6 | mm | |
| H2 | 4 | mm | |
| H3 | 3 | mm | |
| Mass | 0,13 | kg | |
| Load ratings and torques | |||
| Cdyn | Dynamic load rating | 5.230 | N |
| C0 | Static load rating | 9.640 | N |
| M0X | Static moment | 150 | Nm |
| M0Y | Static moment | 62 | Nm |
| M0Z | Static moment | 62 | Nm |
