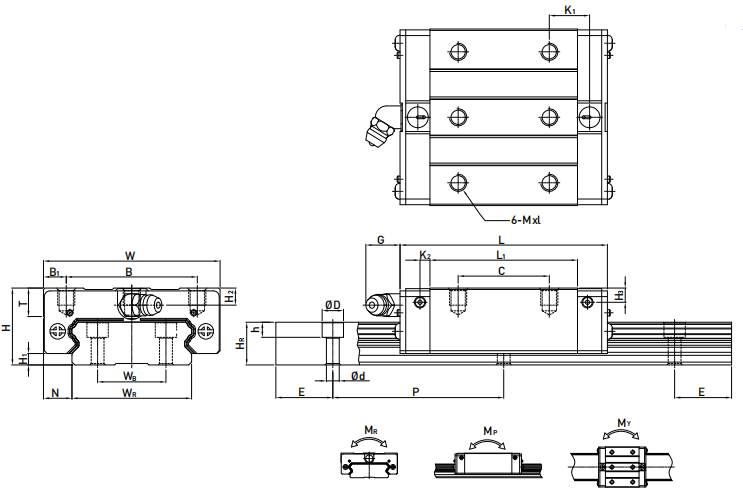

Model No. |
Dimensions of Assembly (mm) |
Dimensions of Block (mm) |
Dimensions of Rail (mm) |
Mounting Bolt for Rail | Basic Dynamic Load Rating | Basic Static Load Rating | Static Rated Moment |
Weight |
||||||||||||||||||||||||
|
MR kN-m |
MP kN-m |
MY kN-m |
Block kg | Rail kg/m | ||||||||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | WR | WB | HR | D | h | d | P | E | (mm) | C(kN) | C0 (kN) | ||||||
| WEH17CA | 17 | 2.5 | 8.5 | 50 | 29 | 10.5 | 15 | 35 | 50.6 | - | 3.1 | 4.9 | M4x5 | 6 | 4 | 3 | 33 | 18 | 9.3 | 7.5 | 5.3 | 4.5 | 40 | 15 | M4x12 | 5.23 | 9.64 | 0.15 | 0.062 | 0.062 | 0.12 | 2.2 |
| WEH21CA | 21 | 3 | 8.5 | 54 | 31 | 11.5 | 19 | 41.7 | 59 | 14.68 | 3.65 | 12 | M5x6 | 8 | 4.5 | 4.2 | 37 | 22 | 11 | 7.5 | 5.3 | 4.5 | 50 | 15 | M4x12 | 7.21 | 13.7 | 0.23 | 0.10 | 0.10 | 0.20 | 3.0 |
| WEH27CA | 27 | 4 | 10 | 62 | 46 | 8 | 32 | 51.8 | 72.8 | 14.15 | 3.5 | 12 | M6x6 | 10 | 6 | 5 | 42 | 24 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4x16 | 12.4 | 21.6 | 0.42 | 0.17 | 0.17 | 0.35 | 4.7 |
| WEH35CA | 35 | 4 | 15.5 | 100 | 76 | 12 | 50 | 77.6 | 102.6 | 18.35 | 5.25 | 12 | M8x8 | 13 | 8 | 6.5 | 69 | 40 | 19 | 11 | 9 | 7 | 80 | 20 | M6x20 | 29.8 | 49.4 | 1.48 | 0.67 | 0.67 | 1.1 | 9.7 |
| WEH50CA | 50 | 7.5 | 20 | 130 | 100 | 15 | 65 | 112 | 140 | 28.05 | 6 | 12.9 | M10x15 | 19.5 | 12 | 10.5 | 90 | 60 | 24 | 14 | 12 | 9 | 80 | 20 | M8x25 | 61.52 | 97.1 | 4.03 | 1.96 | 1.96 | 3.16 | 15.5 |
