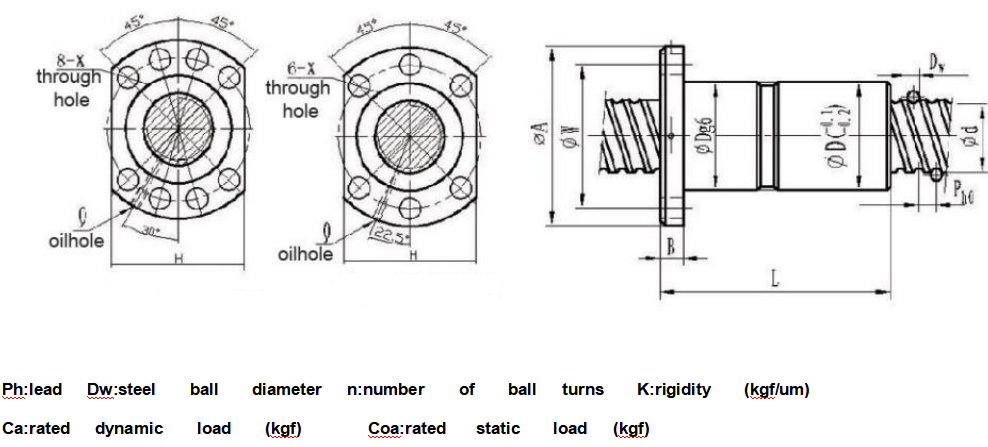

Specifications and models |
d |
Ph0 |
Dw |
D |
A |
B |
L |
W |
H |
X |
Q |
n |
Ca |
Coa |
K |
|
DFU01604-4 |
16 |
4 |
2.381 |
28 |
48 |
10 |
80 |
38 |
40 |
5.5 |
M6 |
4 |
629 |
1270 |
70 |
|
DFU01605-4 |
16 |
5 |
3.175 |
28 |
48 |
10 |
100 |
38 |
40 |
5.5 |
M6 |
4 |
780 |
1790 |
40 |
|
DFU01610-3 |
16 |
10 |
3.175 |
28 |
48 |
10 |
118 |
38 |
40 |
5.5 |
M6 |
3 |
721 |
1249 |
30 |
|
DFU02004-4 |
20 |
4 |
2.381 |
36 |
58 |
10 |
80 |
47 |
44 |
6.6 |
M6 |
4 |
699 |
1617 |
82 |
|
DFU02005-4 |
20 |
5 |
3.175 |
36 |
58 |
10 |
101 |
47 |
44 |
6.6 |
M6 |
4 |
1130 |
2380 |
50 |
|
DFU02504-4 |
25 |
4 |
2.381 |
40 |
62 |
10 |
80 |
51 |
48 |
6.6 |
M6 |
4 |
777 |
2052 |
96 |
|
DFU02505-4 |
25 |
5 |
3.175 |
40 |
62 |
10 |
101 |
51 |
48 |
6.6 |
M6 |
4 |
1280 |
3110 |
70 |
|
DFU02506-4 |
25 |
6 |
3.969 |
40 |
62 |
10 |
105 |
51 |
48 |
6.6 |
M6 |
4 |
1528 |
3284 |
80 |
|
DFU02508-4 |
25 |
8 |
4.763 |
40 |
62 |
10 |
120 |
51 |
48 |
6.6 |
M6 |
4 |
1941 |
3863 |
76 |
|
DFU02510-4 |
25 |
10 |
4.763 |
40 |
62 |
12 |
145 |
51 |
48 |
6.6 |
M6 |
4 |
1944 |
3877 |
66 |
|
DFU03204-4 |
32 |
4 |
2.381 |
50 |
80 |
12 |
80 |
65 |
62 |
9 |
M6 |
4 |
871 |
2661 |
110 |
|
DFU03205-4 |
32 |
5 |
3.175 |
50 |
80 |
12 |
102 |
65 |
62 |
9 |
M6 |
4 |
1450 |
4150 |
80 |
|
DFU03206-4 |
32 |
6 |
3.969 |
50 |
80 |
12 |
105 |
65 |
62 |
9 |
M6 |
4 |
1720 |
4298 |
94 |
|
DFU03208-4 |
32 |
8 |
4.763 |
50 |
80 |
12 |
122 |
65 |
62 |
9 |
M6 |
4 |
2189 |
5079 |
88 |
|
DFU03210-4 |
32 |
10 |
6.35 |
50 |
80 |
12 |
162 |
65 |
62 |
9 |
M6 |
4 |
3390 |
7170 |
158 |
|
DFU04005-4 |
40 |
5 |
3.175 |
63 |
93 |
14 |
105 |
78 |
70 |
9 |
M8X1 |
4 |
1610 |
5330 |
98 |
|
DFU04006-4 |
40 |
6 |
3.969 |
63 |
93 |
14 |
108 |
78 |
70 |
9 |
M6 |
4 |
1911 |
5458 |
110 |
|
DFU04008-4 |
40 |
8 |
4.763 |
63 |
93 |
14 |
132 |
78 |
70 |
9 |
M6 |
4 |
2436 |
6469 |
104 |
|
DFU04010-4 |
40 |
10 |
6.35 |
63 |
93 |
14 |
165 |
78 |
70 |
11 |
M8X1 |
4 |
3910 |
9520 |
100 |
|
DFU05010-4 |
50 |
10 |
6.35 |
75 |
110 |
16 |
171 |
93 |
85 |
11 |
M8X1 |
4 |
4450 |
12500 |
130 |
|
DFU05020-4 |
50 |
20 |
7.144 |
75 |
110 |
16 |
280 |
93 |
85 |
11 |
M8X1 |
4 |
4644 |
14327 |
120 |
|
DFU06310-4 |
63 |
10 |
6.35 |
90 |
125 |
18 |
182 |
108 |
95 |
11 |
M8X1 |
4 |
5070 |
16600 |
160 |
|
DFU06320-4 |
63 |
20 |
9.525 |
95 |
135 |
20 |
290 |
115 |
100 |
13.5 |
M8X1 |
4 |
7573 |
23860 |
168 |
|
DFU08010-4 |
80 |
10 |
6.35 |
105 |
145 |
20 |
182 |
125 |
110 |
13.5 |
M8X1 |
4 |
5620 |
21300 |
180 |
|
DFU08020-4 |
80 |
20 |
9.525 |
125 |
165 |
25 |
295 |
145 |
130 |
13.5 |
M8X1 |
4 |
8485 |
30895 |
168 |
|
DFU10020-4 |
100 |
20 |
9.525 |
150 |
202 |
30 |
340 |
170 |
155X |
17.5 |
M8X1 |
4 |
9420 |
39183 |
220 |
