Low noise Semri FSC Type Ballscrew_Ball Bearing,Roller Bearing,Pillow Block Bearing

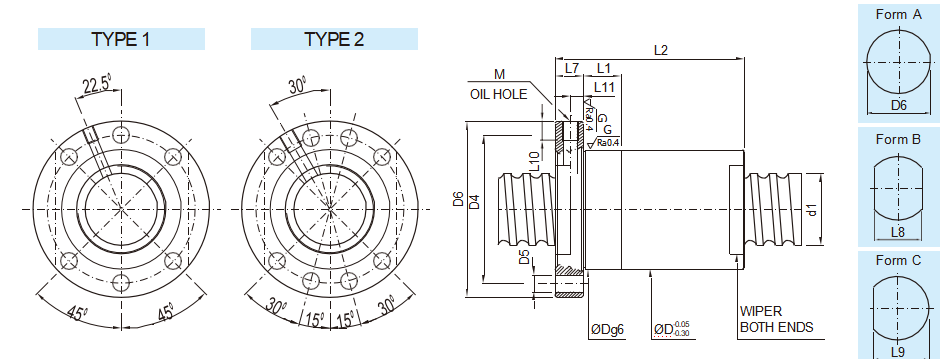

Model	Size		P.C.D.	RD	Ball Dia.	Circuits	Stiffness K (kgf/μm)	Dynamic Load C(kgf)	Static Load Co(kgf)	Nut			Flange							Oil Hole			Double Starts	Incom- plete Thread
Model	Nominal Dia.	Lead	P.C.D.	RD	Ball Dia.	Circuits	Stiffness K (kgf/μm)	Dynamic Load C(kgf)	Static Load Co(kgf)	D	L1	L2	TYPE	Form A (D6)	Form B(L8)	Form C(L9)	L7	D4	D5	M	L10	L11	Double Starts	Incom- plete Thread
14-10K3	14	10	14.6	10.724	3.175	3	24	920	1790	28	10	46	1	48	40	44	10	38	5.5	M5×0.8P	6	5
15-10K3	15	10	16	12.869	3	3	26	930	1970	28	10	45	1	48	40	44	10	38	5.5	M5×0.8P	6	5
15-16K2	15	16	16	12.869	3	2	16	610	1230	28	10	45	1	48	40	44	10	38	5.5	M5×0.8P	6	5
15-10K3	15	10	15.6	12.324	3.175	3	25	960	1930	34	10	44	1	57	43	50	10	45	5.5	M5×0.8P	6	5
15-20K2	15	20	15.6	12.324	3.175	2	15	630	1256	34	10	50	1	57	43	50	10	45	5.5	M5×0.8P	6	5
16-16K2	16	16	16.4	13.124	3.175	2	17	680	1385	34	10	47	1	57	43	50	10	45	5.5	M5×0.8P	6	5		●
20-10K4	20	10	21	17.868	3	4	43	1390	3560	34	10	55	1	57	43	50	10	45	5.5	M5×0.8P	6	5
20-5K4	20	5	20.6	17.324	3.175	4	42	1490	3640	36	10	40	1	58	44	51	10	47	6.6	M6×1P	8	5
20-10K3	20	10	20.6	17.324	3.175	3	32	1130	2660	36	10	47	1	58	44	51	10	47	6.6	M6×1P	8	5
20-20K2	20	20	20.6	17.324	3.175	2	21	760	1730	36	10	57	1	58	44	51	10	47	6.6	M6×1P	8	5	●
20-6K5	20	6	20.8	16.744	3.969	5	58	2420	5660	42	10	49	1	64	50	57	10	53	6.6	M6×1P	8	5		●
20-8K5	20	8	21	16.132	4.763	5	58	2960	6505	45	10	64	1	65	51	58	10	54	6.6	M6×1P	8	5		●
25-5K4	25	5	25.6	22.324	3.175	4	49	1650	4612	40	10	43	1	62	48	55	10	51	6.6	M6×1P	8	5
25-10K3	25	10	25.6	22.324	3.175	3	38	1260	3370	40	10	50	1	62	48	55	10	51	6.6	M6×1P	8	5
25-15K5	25	15	25.6	22.324	3.175	5	63	1980	5730	40	10	90	1	62	48	55	10	51	6.6	M6×1P	8	5
25-20K3	25	20	25.6	22.324	3.175	3	39	1260	3436	40	10	80	1	62	48	55	10	51	6.6	M6×1P	8	5	●
25-25K2	25	25	25.6	22.324	3.175	2	25	840	2170	40	10	69	1	62	48	55	10	51	6.6	M6×1P	8	5	●
25-6K5	25	6	25.8	21.744	3.969	5	68	2720	7192	45	10	50	1	65	51	58	10	54	6.6	M6×1P	8	5
25-8K5	25	8	25.8	21.744	3.969	5	70	2710	7170	48	10	62	1	68	54	61	10	57	6.6	M6×1P	8	5
25-10K4	25	10	25.8	21.744	3.969	4	56	2210	5660	45	10	60	1	65	51	58	10	54	6.6	M6×1P	8	5
25-12K4	25	12	25.8	21.744	3.969	4	56	2200	5640	45	10	67	1	65	51	58	10	54	6.6	M6×1P	8	5		●
25-16K3	25	16	25.8	21.744	3.969	3	42	1670	4127	45	10	71	1	65	51	58	10	54	6.6	M6×1P	8	5		●
25-20K3	25	20	25.8	21.744	3.969	3	43	1710	4290	45	10	80	1	65	51	58	10	54	6.6	M6×1P	8	5
25-8K5	25	8	26	21.132	4.763	5	72	3480	8683	50	10	64	1	70	56	64	10	60	6.6	M6×1P	8	5		●
28-6K5	28	6	28.8	24.744	3.969	5	74	2840	7966	50	10	49	1	80	62	71	12	65	6.6	M6×1P	8	6		●
28-8K5	28	8	29	24.132	4.763	5	79	3690	9780	50	10	62	1	80	62	71	12	65	6.6	M6×1P	8	6		●
28-10K5	28	10	29	24.132	4.763	5	80	3680	9760	52	10	72	1	80	62	71	12	65	6.6	M6×1P	8	6		●
28-16K4	28	16	29	24.132	4.763	4	64	2970	7661	50	10	92	1	80	62	71	12	65	6.6	M6×1P	8	6	●	●
32-5K4	32	5	32.6	29.324	3.175	4	57	1840	5960	48	10	38	1	70	54	62	12	59	6.6	M6×1P	8	6		●
32-5.08K4	32	5.08	32.6	29.324	3.175	4	57	1840	5940	48	10	39	1	70	54	62	12	59	6.6	M6×1P	8	6		●
32-6K5	32	6	32.8	28.744	3.969	5	83	3090	9480	56	10	48	1	86	65	75.5	12	71	6.6	M6×1P	8	6		●
32-8K5	32	8	32.8	28.744	3.969	5	85	3080	9430	53	10	59	1	83	62	72.5	12	68	6.6	M6×1P	8	6
32-8K5	32	8	32.8	28.744	3.969	5	84	3080	9460	50	10	59	1	80	62	71	12	65	9	M6×1P	8	6
32-10K5	32	10	32.8	28.744	3.969	5	85	3080	9450	50	10	73	1	80	62	71	12	65	9	M6×1P	8	6
32-15K4	32	15	32.8	28.744	3.969	4	69	2500	7440	50	10	90	1	80	62	71	12	65	9	M6×1P	8	6	●
32-20K3	32	20	32.8	28.744	3.969	3	52	1900	5430	50	20	87	1	80	62	71	12	65	9	M6×1P	8	6
32-32K2	32	32	32.8	28.744	3.969	2	34	1280	3530	50	20	87	1	80	62	71	12	65	9	M6×1P	8	6	●
32-40K2	32	40	32.8	28.744	3.969	2	32	1240	3440	50	20	94	1	80	62	71	12	65	9	M6×1P	8	6	●
32-8K5	32	8	33	28.132	4.763	5	84	3860	10914	55	10	64	1	86	65	75.5	14	71	9	M6×1P	8	7		●
32-10K5	32	10	33	28.132	4.763	5	86	3850	10890	56	10	79	1	86	65	75.5	14	71	9	M6×1P	8	7
32-12K5	32	12	33	28.132	4.763	5	87	3840	10870	56	20	88	1	86	65	75.5	14	71	9	M6×1P	8	7
32-20K4	32	20	33	28.132	4.763	4	72	3190	8914	54	20	106	1	86	65	75.5	14	71	9	M6×1P	8	7	●	●
32-25K3	32	25	33	28.132	4.763	3	53	2420	6500	54	20	97	1	86	65	75.5	14	71	9	M6×1P	8	7	●	●
32-32K2	32	32	33	28.132	4.763	2	34	1620	4100	54	20	88	1	86	65	75.5	14	71	9	M6×1P	8	7	●	●
32-10K5	32	10	33.4	26.91	6.35	5	90	5640	14480	62	10	77	1	92	74	83	14	77	9	M6×1P	8	7		●
32-12K5	32	12	33.4	26.91	6.35	5	90	5620	14450	62	20	87	1	92	74	83	14	77	9	M6×1P	8	7		●
32-16K4	32	16	33.4	26.91	6.35	4	73	4570	11390	62	20	92	1	92	74	83	14	77	9	M6×1P	8	7		●
32-20K4	32	20	33.4	26.91	6.35	4	70	4240	10854	57	20	107	1	87	66	78	14	72	9	M6×1P	8	7
36-6K5	36	6	36.8	32.744	3.969	5	88	3240	10632	56	10	51	2	86	65	77	14	71	9	M6×1P	8	7		●
36-10K5	36	10	37.4	30.91	6.35	5	98	6010	16440	66	20	80	2	96	73	84.5	14	81	9	M8×1P	10	7		●
36-12K5	36	12	37.4	30.91	6.35	5	99	5990	16420	66	20	87	2	96	73	84.5	14	81	9	M8×1P	10	7
36-16K5	36	16	37.4	30.91	6.35	5	100	5960	16350	66	20	109	2	96	73	84.5	14	81	9	M8×1P	10	7		●
36-20K4	36	20	37.4	30.91	6.35	4	80	4840	12880	65	20	108	2	95	72	83.5	14	80	9	M8×1P	10	7	●	●
36-20K4	36	20	37.4	30.91	6.35	4	79	4840	12880	61	20	108	2	91	68	79.5	14	76	9	M8×1P	10	7
36-36K2	36	36	37.4	30.91	6.35	2	39	2540	6240	61	20	95	2	91	68	79.5	14	76	9	M8×1P	10	7	●
38-8K5	38	8	39	34.132	4.763	5	96	4190	13110	61	20	64	2	91	68	79.5	14	76	9	M8×1P	10	7		●
38-10K4	38	10	39.4	32.91	6.35	4	81	5050	13790	63	20	70	2	93	70	81.5	14	78	9	M8×1P	10	7
38-15K4	38	15	39.4	32.91	6.35	4	83	5020	13740	63	20	88	2	93	70	81.5	14	78	9	M8×1P	10	7
38-16K5	38	16	39.4	32.91	6.35	5	104	6140	17340	63	20	108	2	93	70	81.5	14	78	9	M8×1P	10	7
38-20K4	38	20	39.4	32.91	6.35	4	83	4990	13660	63	25	108	2	93	70	81.5	14	78	9	M8×1P	10	7	●
38-25K4	38	25	39.4	32.91	6.35	4	83	4940	13560	63	25	127	2	93	70	81.5	14	78	9	M8×1P	10	7	●	●
38-40K2	38	40	39.4	32.91	6.35	2	40	2590	6560	63	25	103	2	93	70	81.5	14	78	9	M8×1P	10	7	●
