CNC Ball Screws DFV Series Ball Screws

2024-12-27
service content：


Ball Screw Low noise Ba roller beari ese ball bea

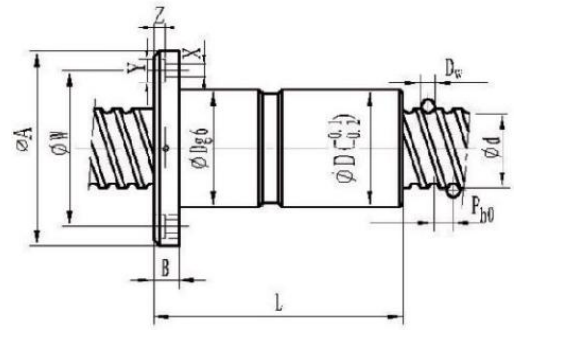

Specifications and models d Pho DW D A B L W H X Y Z Q n Ca Coa K
DFV01510-2.7 15 10 3.175 34 58 10 107 45 34 5.5 9.5 5.5 M6 2.7X1 693 1267 28
DFV02005-4.8 20 5 3.175 44 67 11 112 55 52 5.5 9.5 5.5 M6 4.8X1 1255 2816 65
DFV02510-2.7 25 10 6.35 68 102 15 130 84 82 9 14 8.5 M8X1 2.7X1 2205 4118 47
DFV03210-4.8 32 10 6.35 74 108 15 186 90 82 9 14 9 M8X1 4.8X1 3963 9011 106
DFV03220-2.7 32 20 6.35 74 108 16 200 90 82 9 14 8.5 M8X1 2.7X1 2481 5385 58
DFV04010-4.8 40 10 6.35 82 124 18 188 102 94 11 17.5 11 M8X1 4.8X1 4372 11262 130
DFV04020-2.7 40 20 6.35 82 124 18 200 102 90 11 17.5 11 M8X1 2.7X1 2723 6653 73
DFV05010-4.8 50 10 6.35 93 135 16 173 113 98 11 17.5 11 M8X1 4.8X1 4823 14080 162
DFV05020-2.7 50 20 9.525 105 152 28 221 128 110 14 20 13 M8X1 2.7X1 5149 2118 93
DFV06310-4.8 63 10 6.35 108 154 22 195 130 110 14 20 13 M8X1 4.8X1 5377 18023 202
DFV06320-2.7 63 20 9.525 122 180 28 220 150 130 18 26 18 M8X1 2.7X1 5651 4969 115
DFV08010-4.8 80 10 6.35 130 176 22 195 152 132 14 20 13 M8X1 4.8X1 5931 22528 256
DFV08020-4.8 80 20 9.525 143 204 28 340 172 148 18 26 18 M8X1 4.8X1 0352 34215 258
DFV08020-7.6 80 20 9.525 143 204 28 460 172 148 18 26 18 M8X1 4.8X2 15370 54175 408
